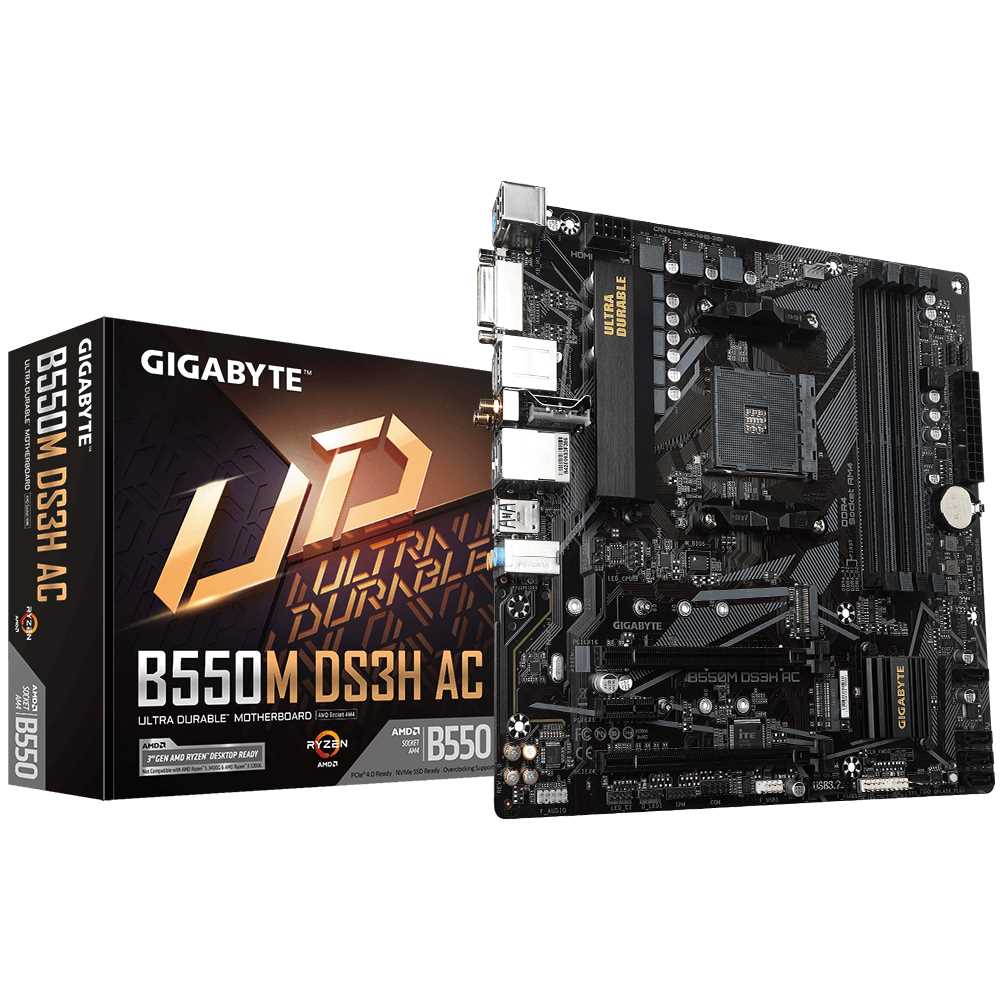

PLACA MADRE GIGABYTE AM4 B550M WIFI DS3H AC R2

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution- PCIe 4.0 x16 Slot- Dual PCIe 4.0/3.0 M.2 Connectors- Intelr Dual Band 802.11ac WIFI- GIGABYTE 8118 Gaming LAN- Smart Fan 5 with FAN STOP- RGB FUSION 2.0- Q-Flash Plus
Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4- 4 DIMMs
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra Durable PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
Onboard Intelr Dual Band 802.11ac Wireless | BT 4.2 with WIFI Antenna
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management
Rear HDMI | DVI Support
RGB FUSION 2.0 Supports Addressable LED | RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors - Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU- Memory and Graphics Card
Anti-Sulfur Resistors Design
B550M DS3H AC (rev. 1.x)Caracteristicas principales Especificacion Soporte y Descargas Comprar
Procesador
AMD Socket AM4- support for: AMD Socket AM4- support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
(Please refer qCPU Support Listq for more information.)
Chipset
AMD B550
Memoria
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen 5000 G-series / Ryzen 5000 Series/ 3rd Generation AMD Ryzen processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer qMemory Support Listq for more information.)
Graficos Integrados
Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x DVI-D port- supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port- supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version- HDCP 2.3- and HDR.
Maximum shared memory of 16 GB
Audio
Realtekr Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio- you need to open the audio software and select Device advanced settings mayor a Playback Device to change the default setting first. Please visit GIGABYTE s website for details on configuring the audio software.
LAN
Realtekr GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module
Intelr Wi-Fi AC 3168
WIFI 802.11a/b/glbrg/ac- supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Puertos de Expansion
1 x PCI Express x16 slot (PCIEX16)- integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
* For optimum performance- if only one PCI Express graphics card is to be installed- be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4)- integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1)- integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Interfaz de Almacenamiento
1 x M.2 connector (M2A_CPU)- integrated in the CPU- supporting Socket 3- M key- type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB)- integrated in the Chipset- supporting Socket 3- M key- type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors- integrated in the Chipset:
Support for RAID 0- RAID 1- and RAID 10
USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel- 2 ports available through the internal USB header)
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin- for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
*All fan headers are subject to support AIO_Pump- Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

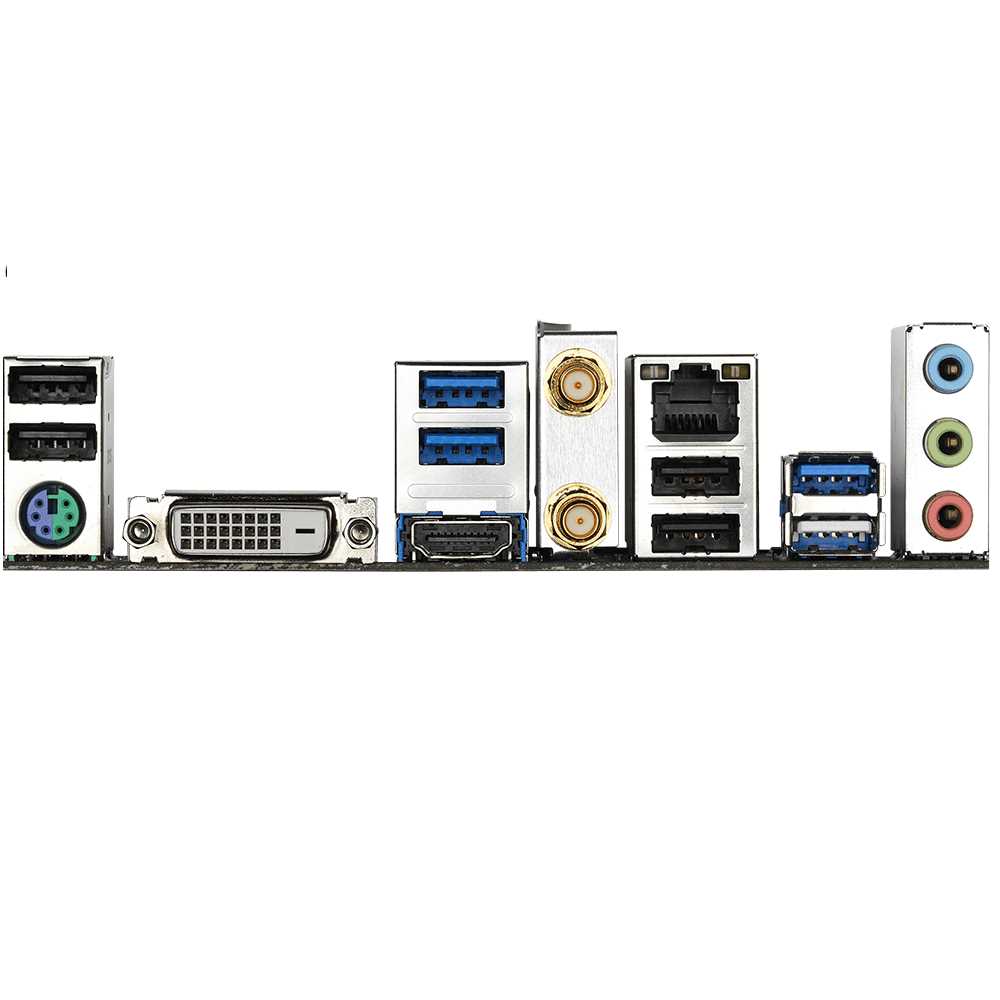

Conectores del Panel Trasero
1 x PS/2 keyboard/mouse port
1 x DVI-D port
2 x SMA antenna connectors (1T1R)
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Controlador de E/S
iTEr I/O Controller Chip
Monitorizacion H/W
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a- DMI 2.7- WfM 2.0- SM BIOS 2.7- ACPI 5.0
Caracteristicas Unicas
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Software Incluido
Nortonr Internet Security (OEM version)
Realtekr 8118 Gaming LAN Bandwidth Control Utility
Sistema Operativo
Support for Windows 10 64-bit
Diseno
Micro ATX Form Factor; 24.4cm x 24.4cm
