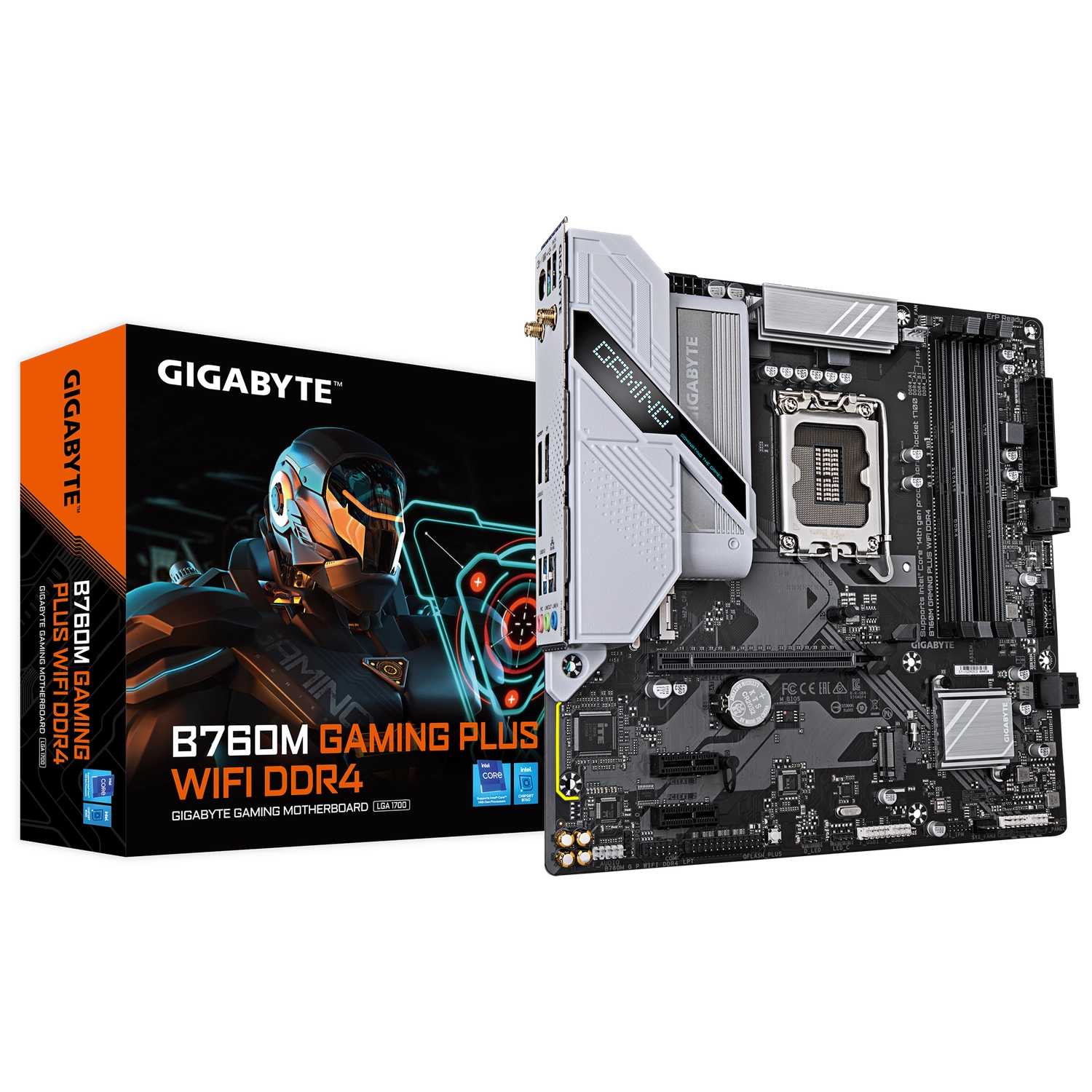

MOTHER GIGABYTE B760M GAMING PLUS WIFI 1700 DDR4
Admite procesadores Intelr Core 14.o- 13.o y 12.o
Rendimiento incomparable: Solucion VRM digital hibrida de 4+1+1 fases
DDR4 de doble canal: 4 DIMM compatibles con modulos de memoria XMP
Almacenamiento de proxima generacion: 2 conectores PCIe 4.0 x4 M.2
Redes rapidas: Wi-Fi 6 802.11ax- GbE LAN
Conectividad extendida: USB-Cr frontal de 5 Gb/s- DP- HDMI
Ventilador inteligente 6: cuenta con multiples sensores de temperatura- cabezales de ventilador hibridos con funcion de parada del ventilador
Q-Flash Plus: Actualiza la BIOS sin instalar la CPU- la memoria ni la tarjeta grafica

Procesador
LGA1700 socket: Support for the 14th- 13th- and 12th Generation Intelr Core- Pentiumr Gold and Celeronr Processors
L3 cache varies with CPU
(Please refer qCPU Support Listq for more information.)
Chipset
Intelr B760 Express Chipset
Memoria
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types- data rate (speed)- and number of DRAM modules- please refer to qMemory Support Listq on GIGABYTE s website for more information.)
Graficos Integrados
Integrated Graphics Processor-Intelr HD Graphics support:
- 1 x HDMI port- supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort- supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Audio
Realtekr Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio- access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtekr GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module
Realtekr Wi-Fi 6 RTL8851BE
- WIFI a- b- g- n- ac- ax- supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Puertos de Expansion
CPU:
- 1 x PCI Express x16 slot- supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots- supporting PCIe 3.0 and running at x1
Interfaz de Almacenamiento
CPU:
- 1 x M.2 connector (Socket 3- M key- type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3- M key- type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0- RAID 1- RAID 5- and RAID 10 support for SATA storage devices
USB
Chipset:
- 1 x USB Type-Cr port with USB 3.2 Gen 1 support- available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel- 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-Cr header- with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

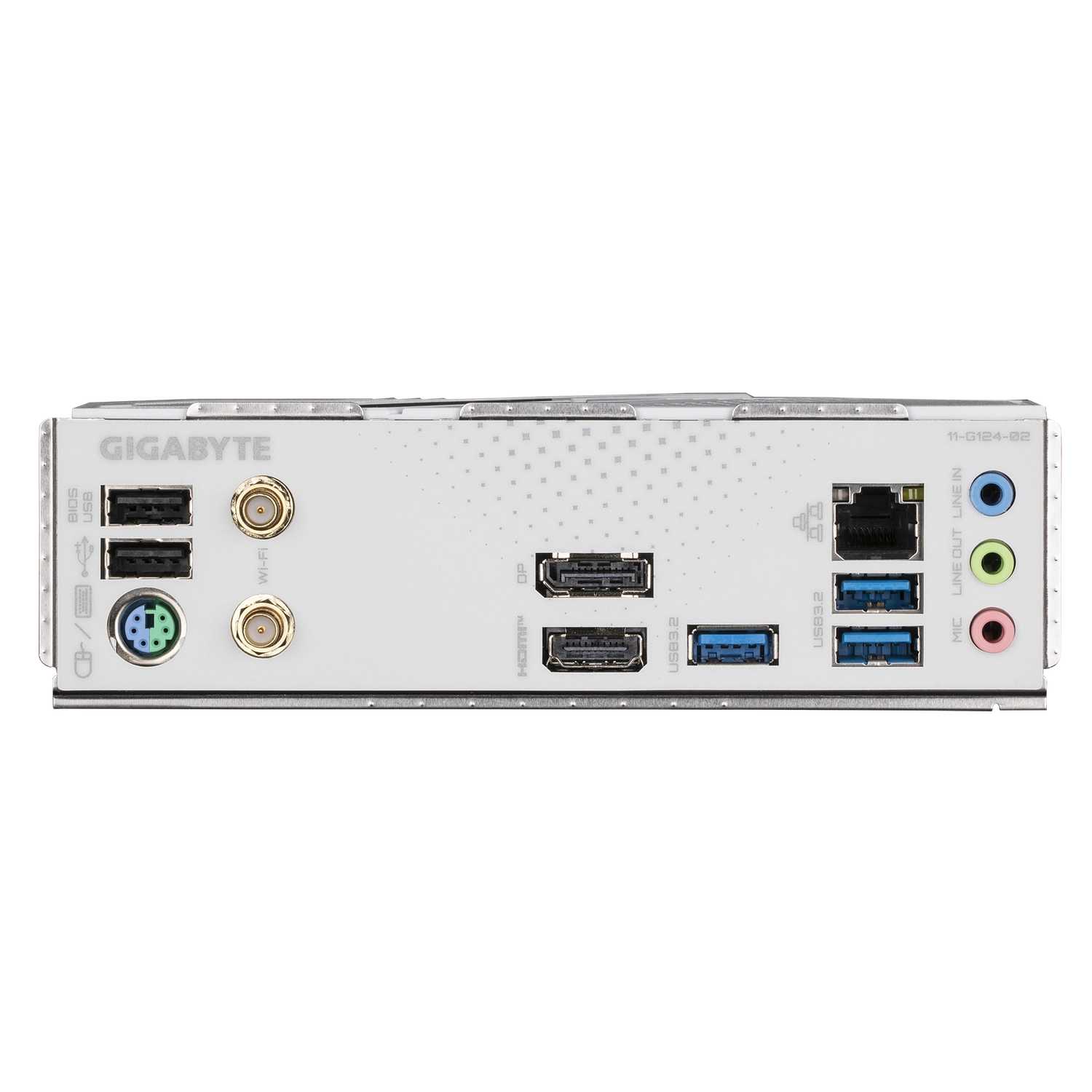

Conectores del Panel Trasero
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
Controlador de E/S
iTEr I/O Controller Chip
Monitorizacion H/W
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a- DMI 2.7- WfM 2.0- SM BIOS 2.7- ACPI 5.0
Caracteristicas Unicas
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Software Incluido
Nortonr Internet Security (OEM version)
LAN bandwidth management software
Sistema Operativo
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Diseno
Micro ATX Form Factor; 24.4cm x 24.4cm
