Socket AM5 de AMD: compatible con procesadores de las series AMD Ryzen 9000/8000/7000
Solucion VRM de 8+2+2 fases con gemelo digital
DDR5 de doble canal: 4 DIMM compatibles con modulos de memoria AMD EXPO
WIFI EZ-Plug: Diseno rapido y sencillo para la instalacion de antenas Wi-Fi
EZ-Latch Plus: ranuras PCIe y M.2 con liberacion rapida y diseno sin tornillos
EZ-Latch Click: disipadores de calor M.2 con diseno sin tornillos
Interfaz de usuario amigable: multiples temas- control de ventilador AIO y escaneo automatico Q-Flash en BIOS y SW.
Almacenamiento ultrarrapido: 3 ranuras M.2- incluida 1 PCIe 5.0 x4
Proteccion termica eficiente: VRM Thermal Armor Advanced y M.2 Thermal Guard
Redes rapidas: LAN de 2-5 GbE y Wi-Fi 6 802.11ax
Conectividad extendida: USB 4.0 tipo C dual con DP-Alt- HDMI
Rendimiento duradero
Las placas base GIGABYTE Ultra Durable- construidas con componentes optimos de adentro hacia afuera- brindan un rendimiento excelente y una plataforma atemporal.
Conectividad futura
La maxima conectividad con increibles velocidades de transferencia de datos a traves de la red y el almacenamiento de proxima generacion.
CREADO PARA LA PC MAS AVANZADA PARA JUEGOS Y CREACION
Cuando lo mas rapido es suficiente- una placa base AMD serie X800 cumple con su funcion. Con USB 4.0 integrado junto con solidas capacidades de overclocking 1 - compatibilidad con memoria DDR5 de canal dual mas rapida- tecnologia AMD EXPO y compatibilidad con PCIer 5.0 tanto para graficos como para NVMe- puede jugar los juegos mas exigentes y entregar sus proyectos mas grandes con el rendimiento revolucionario de una placa base AMD serie X800 y procesadores AMD Ryzen serie 9000- 8000 y 7000.
Procesador
AMD Socket AM5- support for:
AMD Ryzen 9000 Series Processors/
AMD Ryzen 8000 Series Processors/
AMD Ryzen 7000 Series Processors
(Go to GIGABYTE s website for the latest CPU support list.)
Chipset
AMD X870
Memoria
Support for DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types- data rate (speed)- and number of DRAM modules- please refer to qMemory Support Listq on GIGABYTE s website for more information.)
Grafica Integrada
Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4r Controller:
- 2 x USB4r USB Type-Cr ports- supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x HDMI port- supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version- HDCP 2.3- and HDR.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtekr Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio- access the audio software for audio settings.
LAN
Realtekr 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Modulo de comunicaciones inalambricas
Realtekr Wi-Fi 6 RTL8851BE (PCB rev. 1.0)
- WIFI a- b- g- n- ac- ax- supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Zocalos de Expansion
1 x PCI Express x16 slot (PCIEX16)- integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed- be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots- supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Interfaz de almacenamiento
1 x M.2 connector (M2A_CPU)- integrated in the CPU- supporting Socket 3- M key- type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB)- integrated in the Chipset- supporting Socket 3- M key- type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB)- integrated in the Chipset- supporting Socket 3- M key- type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector.
4 x SATA 6Gb/s connectors
RAID 0- RAID 1- RAID 5- and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0- RAID 1- and RAID 10 support for SATA storage devices
USB
CPU+ASMedia USB4r controller:
- 2 x USB4r USB Type-Cr ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel- 4 ports available through the internal USB headers)
Chipset:
- 1 x USB Type-Cr port with USB 3.2 Gen 2x2 support- available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel- 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Conectores Internos E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-Cr header- with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
4 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

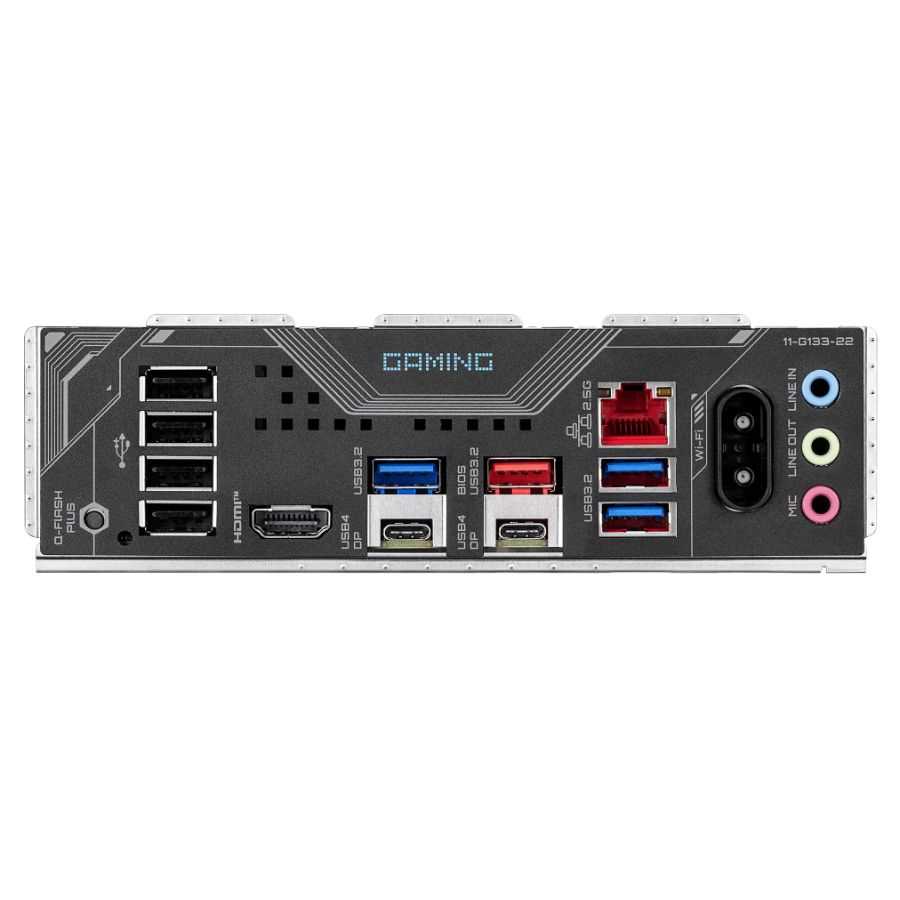

Panel E/S Trasero
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port (Note)
2 x USB4r USB Type-Cr ports (DisplayPort (Note))
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
Controlador E/S
iTEr I/O Controller Chip
Monitorizacion Hardware
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a- DMI 2.7- WfM 2.0- SM BIOS 2.7- ACPI 5.0
Otras Caracteristicas
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Nortonr Internet Security (OEM version)
LAN bandwidth management software
Sistema Operativo
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Formato
ATX Form Factor; 30.5cm x 24.4cm
