Part No 90NR0BV7-M00UJ0
Sales Model Name FX507VV-LP142
EAN Code
UPC Code
WEEE
BASE UNIT VSNR0BV7-BU1100

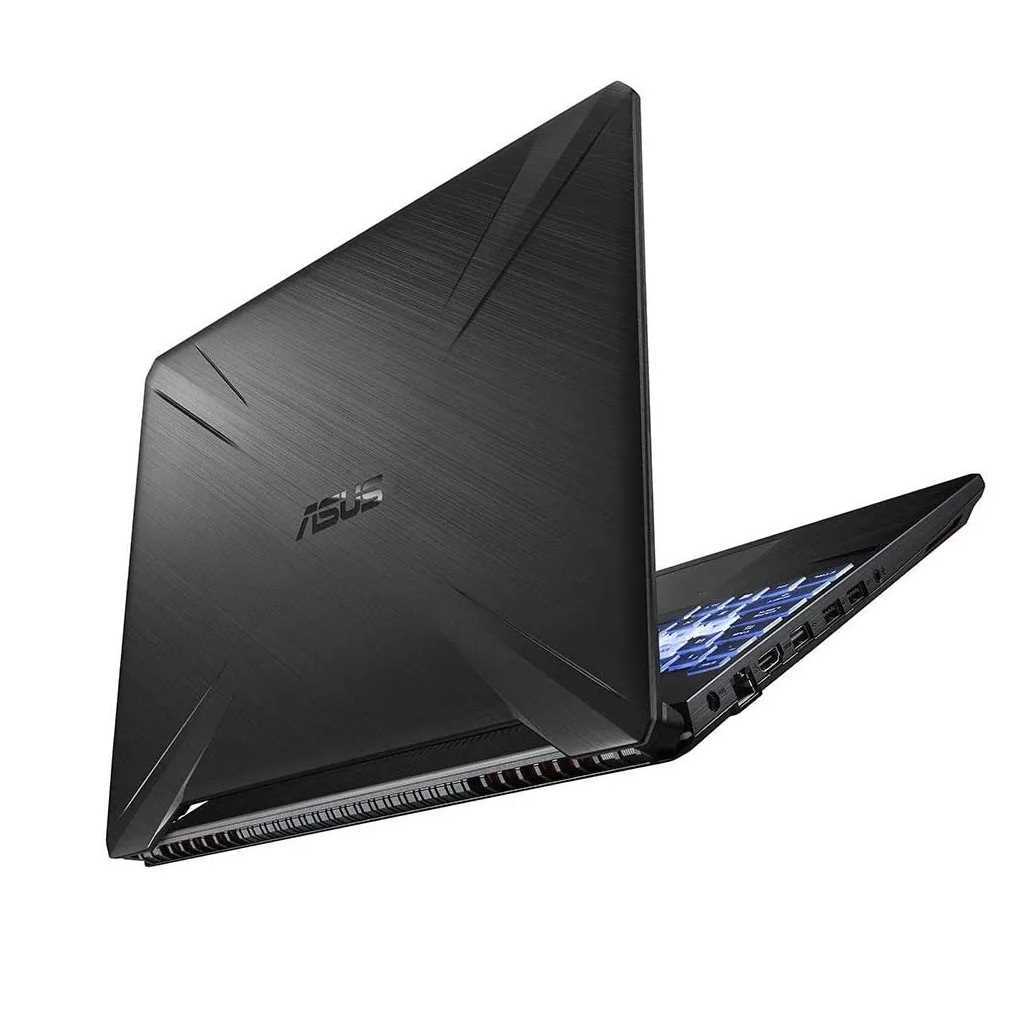

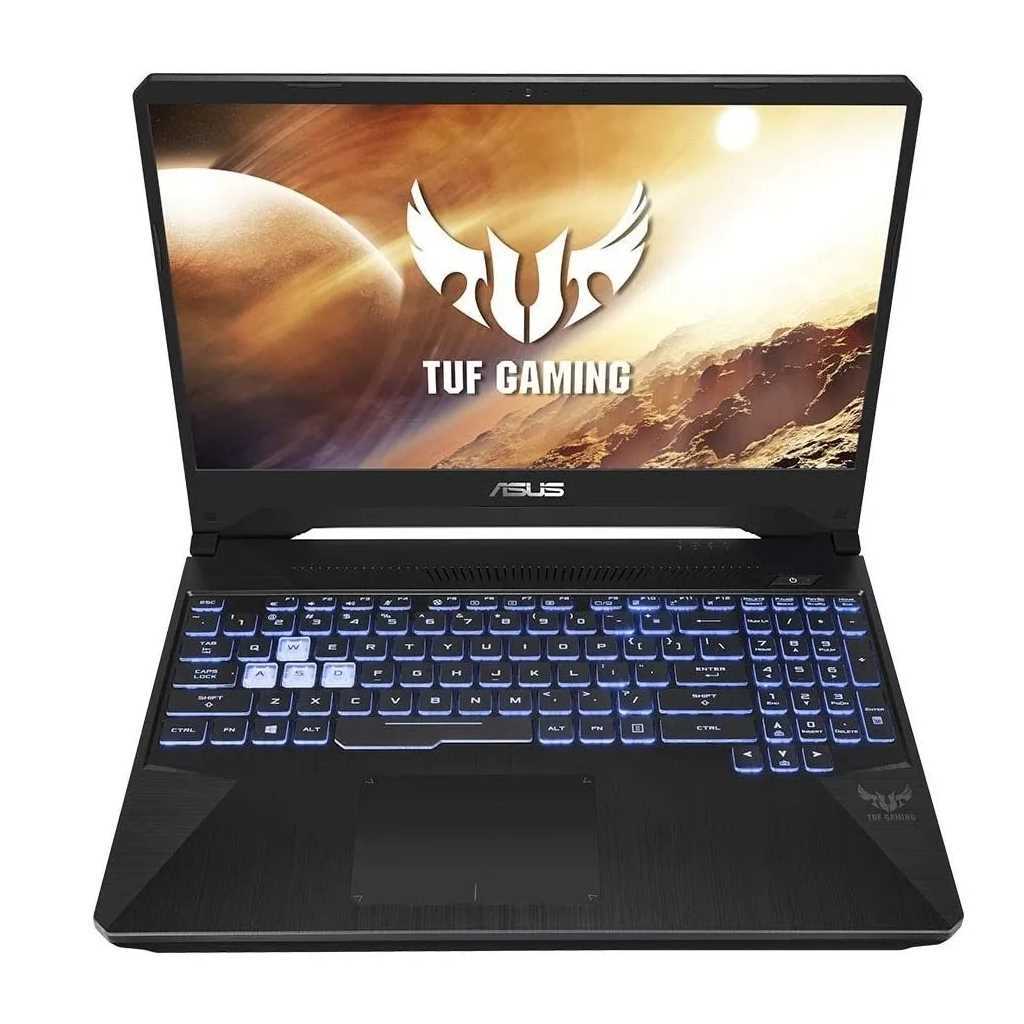

Marketing Name ASUS TUF Gaming F15
Operating System No preinstalled OS
Color Mecha Gray
Dimension (W x D x H) 35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94q x 9.88q x 0.88q ~ 0.98q)
Weight 2.20 Kg (4.85 lbs)
Processor 13th Gen Intelr Core i7-13620H Processor 2.4 GHz (24M Cache- up to 4.9 GHz- 10 cores: 6 P-cores and 4 E-cores)
Chipset N/A
Intergrated GPU Intelr Iris X? Graphics
Discrete/Optimus MUX Switch + NVIDIAr Advanced Optimus
Graphic NVIDIAr GeForce RTX 4060 Laptop GPU (233 AI TOPs)
Graphic Wattage 2420MHz* at 140W (2370MHz Boost Clock+50MHz OC- 115W+25W Dynamic Boost)
Graphic Memory 8GB GDDR6
Panel Size 15.6-inch
Resolution FHD (1920 x 1080) 16:9
Refresh Rate 144Hz
Viewing Angle 85/85/85/85
Panel Tech Value IPS-level
Brightness 250
Contrast Ratio 1000:1
NTSC % 72%
SRGB % 100%
Adobe % 75.35%
Glare Anti-glare display
Adaptive-Sync technology G-Sync
Pantone N/A
Support Dolby Vision HDR N/A
On board memory N/A
DIMM Memory 16GB DDR5-4800 SO-DIMM
Total System Memory DDR5 16GB
Memory Slot 2x SO-DIMM slots
Memory Max. 64GB
Multi-channel memory technology Support dual channel memory
Storage 1TB PCIer 4.0 NVMe M.2 SSD
M.2 slots support either SATA or NVMe 2
M.2 SSD Support List qM.2 2TB G4X4 PCIe SSD
M.2 1TB G4X4 PCIe SSD
M.2 512GB G4X4 PCIe SSDq
Expansion Slot (includes used) q2x DDR5 SO-DIMM slots
2x M.2 PCIeq
LAN 10/100/1000 Mbps
Wireless Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetoothr 5.2 Wireless Card (*Bluetoothr version may change with OS version different.)
On board Wireless Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetoothr 5.1 Wireless Card (*Bluetoothr version may change with OS version different.)
I/O Ports q1x RJ45 LAN port
1x Thunderbolt 4 with support for DisplayPort (data speed up to 40Gbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort / power delivery / G-SYNC (data speed up to 10Gbps)
2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)q
Display output 1x HDMI 2.1 FRL
Camera 720P HD camera
Mic Built-in array microphone
Keyboard Type Backlit Chiclet Keyboard 1-Zone RGB
Aura Sync Yes
Touchpad qTouchpad
N/Aq
Speakers 2-speaker system
Audio q1x 3.5mm Combo Audio Jack
Built-in array microphoneq
Audio Tech qAI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.)q
Security qBIOS Administrator Password and User Password Protection
Kensington Security Slot
Trusted Platform Module (Firmware TPM)q
Battery 90WHrs- 4S1P- 4-cell Li-ion
Fast charging Recharge from 0-50% in 30 minutes
Power o6.0- 240W AC Adapter- Output: 20V DC- 12A- 240W- Input: 100~240C AC 50/60Hz universal
Ecolabels | Compliances qENERGY STARr
EPEAT Bronzeq
Reparability Index (for France) 8.5
